Insulating joint male/male PN10 for gas/water

Insulating joint male/male PN10 for gas/water
PN10 insulating joints are steel joints used for the sectioning of low pressure (10 kg/cm2) service lines for gas and water. Insulating joints provide cathodic protection in all piping systems and serve as a positive leak proof long lasting block against the flow of electrical current. The installation of insulating joints on service lines guarantees a superior security of the pipeline and significantly reduce maintenance costs.
The   Male-Male PN10 joints are threaded joints (external taper threads ISO7/EN10226-1) completely factory assembled. These characteristics make the installation easy and fast. Male Male PN10 joints are available in small diameters ranging from ½ in up to 4 in (see the whole range of diameters available in the table below).
PN10 Male Male isolation joints are supplied from stock.
Meccanica Segrino insulating joints are manufactured in accordance with the requirements of UNI-CIG, ASTM and API.
Insulating Joints tested and manufactured in accordance to UNI-CIG 10284
Working
Temperature
Electric
insulation
Dielectric
resistance
Testing
pressure
Working
pressure
-10°C + 70° C 10 Mohm 3.0 Kv 15 Kg/cm2  10 Kg/cm2

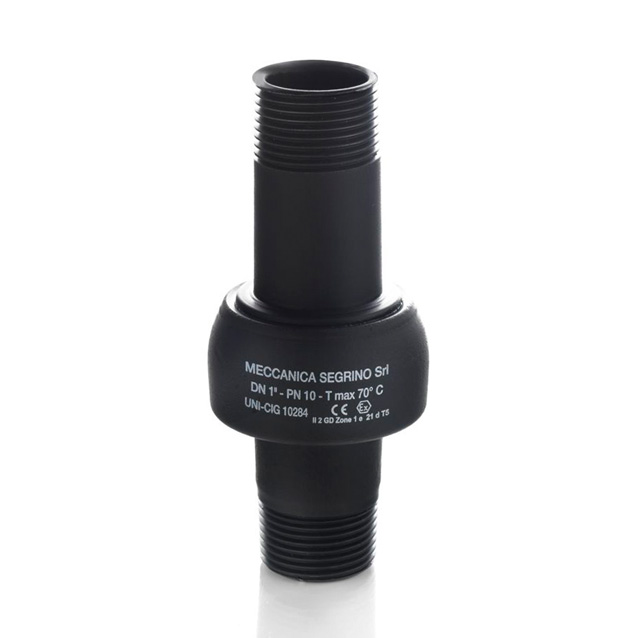

  • Meccanica Segrino - Giunto Isolante maschio/maschio PN10 per gas e acqua / Isolation joint male/male PN10 for gas/water
  • Meccanica Segrino - Giunto Isolante maschio/maschio PN10 per gas e acqua / Isolation joint male/male PN10 for gas/water

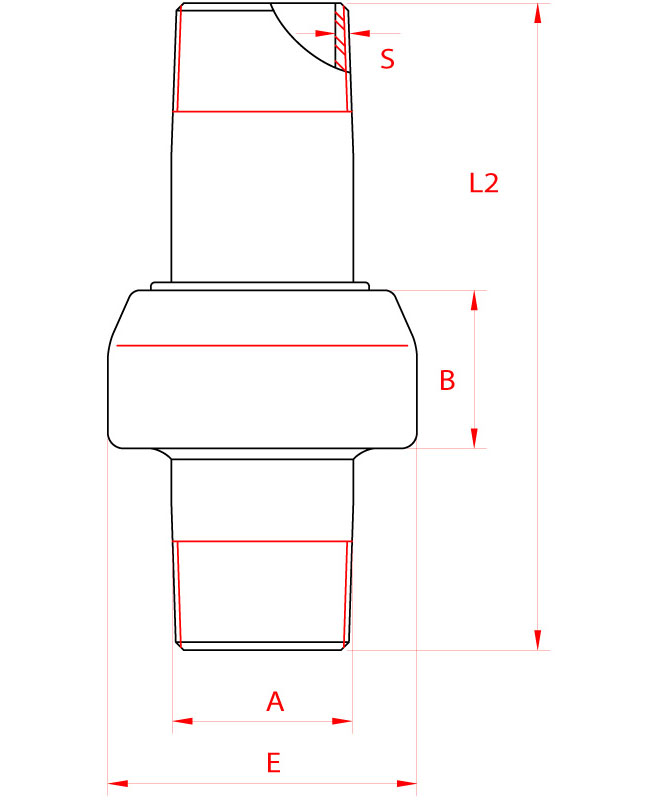

The dimensions reported in the table are in millimeters (mm)

Product Code ND A E B L2 Weight (in Kg)
MM015 1/2" 21,3 46 28 110 0,4
MM020 3/4" 26,7 53 30 125 0,5
MM025 1" 33,4 60 32 137 0,7
MM032 1" 1/4 42,2 71 35 154 1,0
MM040 1" 1/2 48,3 77 37 168 1,2
MM050 2" 60,3 90 38 170 1,7
MM065 2" 1/2 76,1 113 53 194 3,0
MM080 3" 88,9 127 53 232 4,0
MM100 4" 114,3 156 65 260 6,5
Mechanical Features
Hot forged socket: ASTM A 105 or equivalent
Hot forged spigot: API 5L gr.B or equivalent
Insulating ring in polycarbonate
Gasket ring in Hytrel 40 D Dupont
Epoxyphenolic painting
Thread ends: ISO7/EN10226-1
Certificates issued: EN 10204 3.1 and CE compliance


Il 2 GD Zone 1 e 21 d T5 Technical file: A01-MS
